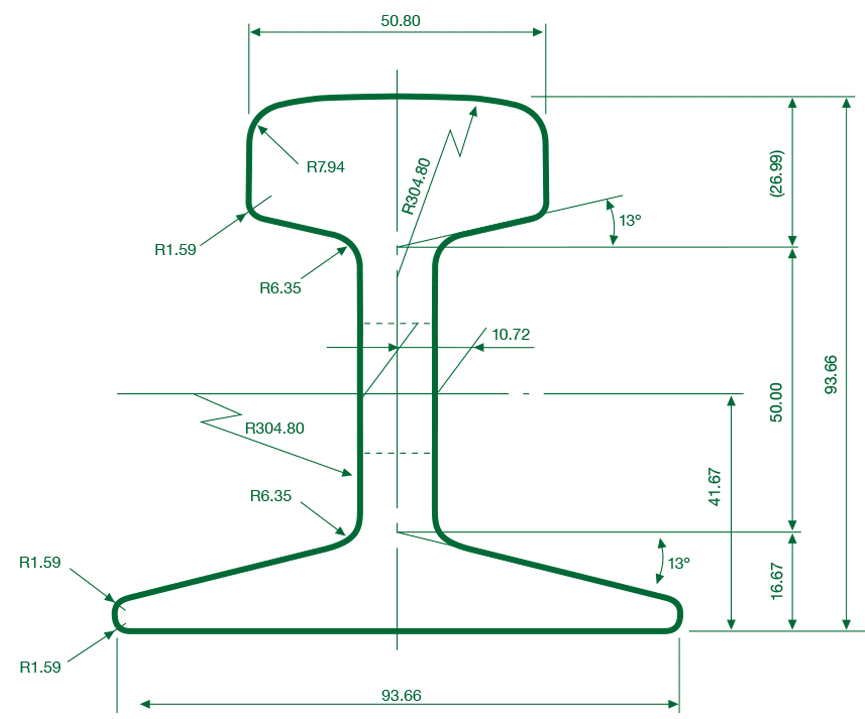

22kg Rail
Overview
JIS E1103 M
22kg rail from EMRAILS are manufactured to the Japanese Industrial Standard E1103-M in 12.19 metre lengths.
They generally used in applications such as trolley rails, crane rail, slipways, and multiple other applications.
Specifications
| MECHANICAL PROPERTIES | |
| TENSILE STRENGTH N/mm2: | 637 min. |
| MOMENT OF INERTIA: | 339 cm4 |
| STANDARD LENGTH: | 12.19m |
| ELONGATION (%): | 10 min |
| SECTION MODULUS: | 69.6 cm3 |
| CALCULATED MASS: | 22.3 kg/m |
