50kg Rail
Overview

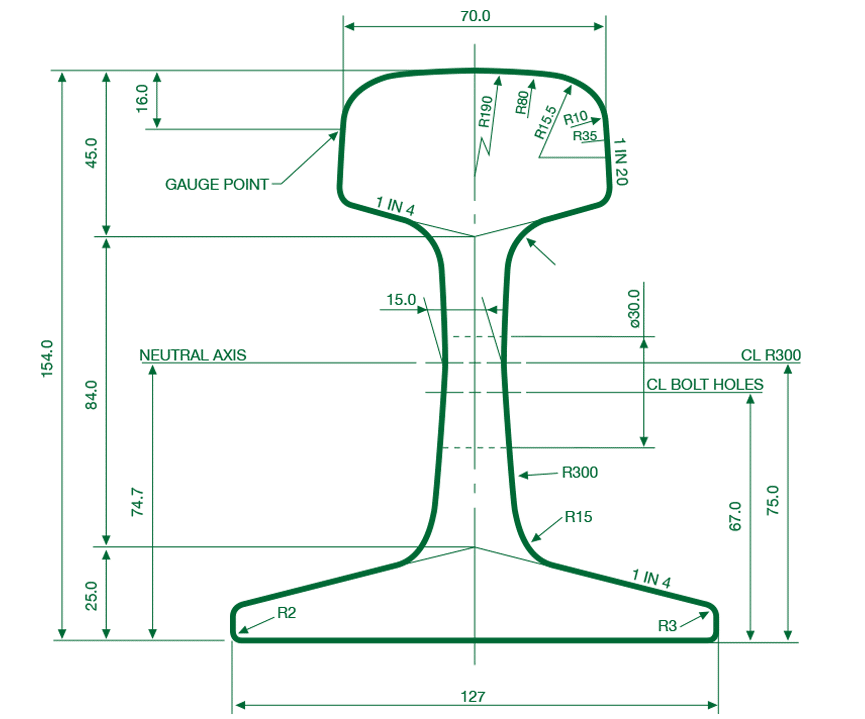

RT23 based upon the Australian Standard AS1085.1-2002
50kg rail from EMRAILS is a Plain Carbon rail suitable for most network and light freight and mining rail applications. Also suitable for crane rail, conveyor trippers, slipways, and workshop pads.
Specifications
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.19m & 13.72m |
| CALCULATED MASS: | 50.6 kg/m |
| 0.2% Proof Stress MPa: | 420 |
| Tensile Strength MPa: | 880 |
| % Elongation Gauge Length = 5.65 √So | 8 |
| Surface Hardness H.B: | 260 |
