60kg Head Hardened Rail
Overview

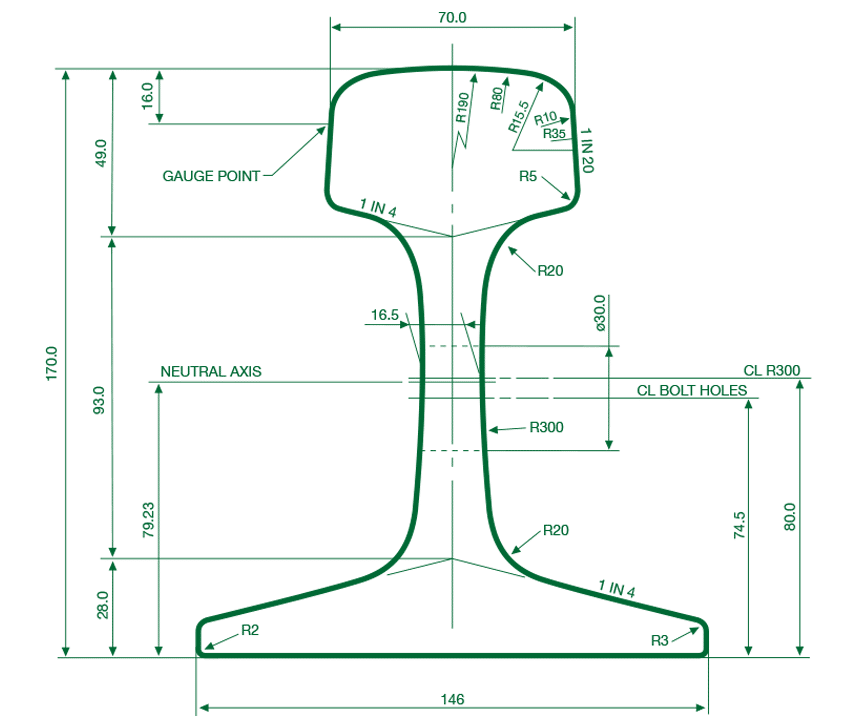

RT23 HH based upon the Australian Standard AS1085.1-2002
60kg HH rail from EMRAILS is a Head Hardened rail, this gives it better durability and suitability for heavy axle loads and tight radius curves and can contribute to the longevity of the rail network.
Specifications
| MECHANICAL PROPERTIES | |
| STANDARD LENGTH: | 12.19m & 13.72m |
| CALCULATED MASS: | 60.6 kg/m |
| 0.2% Proof Stress MPa: | 780 |
| Tensile Strength MPa: | 1130 |
| % Elongation Gauge Length = 5.65 √So | 9 |
